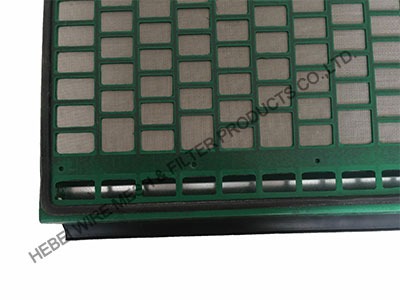

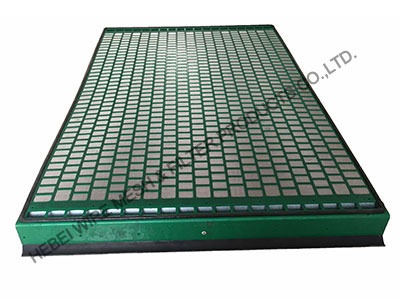

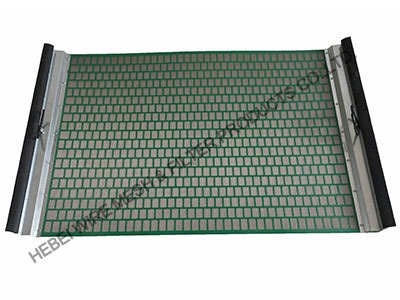

TD500 Shaker Screen, Flat Screen for Low Cost, Fast Screen Changing Drilling fluids and cuttings are the largest potential waste stream generated during drilling operations. Solids control equipment separated the solids cuttings from the fluid and processed further for treatment and disposal. TD500 shale shaker screen is one of the technologies to remove unwanted solids and recover drilling mud for reuse. It optimizes the drilling efficiencies by reducing fluid losses. The TD500 flat series screens are de-blinding screen panels that utilize a perforated support plate for added mesh support and reparability. The TD500 series screens are manufactured using ultra fine cloth square mesh and are available in mesh sizes from 20 to 400. Each screen is factory tensioned to eliminate improper tensioning in the field. Shale shaker screen plays a key role in responding to the environmental and economic pressures faced by the drilling industry today. From improved drilling fluids properties to lower mud dilution rates to drier solids removed from the fluid, our screen offers high quality performance in each project.

API RP 13C Designation	layers	D 100 (micron)	Conductance  (kd/mm)	Non-Blanked Area : sq.ft
API 35	2/3	477.5	9.19	4.05
API 40	2/3	411.7	8.05	4.05
API 45	2/3	341.1	6.20	4.05
API 50	2/3	288.5	3.69	4.05
API 60	2/3	243.7	3.69	4.05
API 70	2/3	202.7	3.69	4.05
API 80	2/3	170.4	2.11	4.05
API 100	2/3	142.0	1.66	4.05
API 120	2/3	117.8	1.30	4.05
API 140	2/3	104.0	1.14	4.05
API 170	2/3	85.4	0.83	4.05
API 200	2/3	73.3	0.72	4.05
