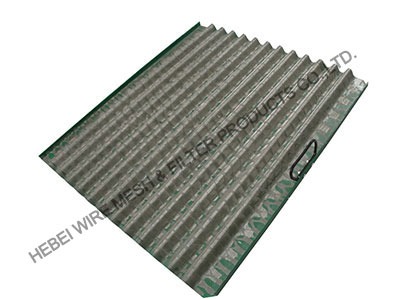

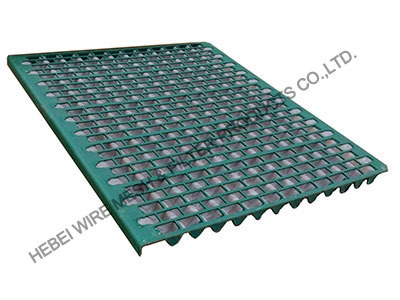

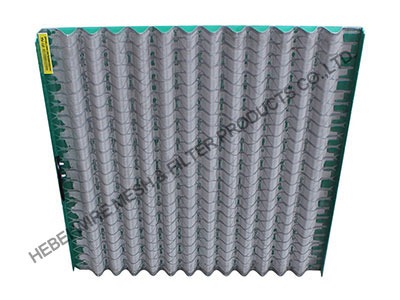

Model 600 Shale Shaker Screen The Pinnacle screen design keeps the peak areas clear of solids and allows higher fluid throughput. This prevents the horseshoe effect that is common on crowned bed shakers. Pinnacle screens minimize fluid loss by spreading thinner layers of fluid dispersion over an increased screen area, resulting in more effective drying capabilities. Pinnacle screens provide an easy, cost effective increase in shaker performance. Designed with the latest technology, Pinnacle screens allow rigs to screen finer earlier in the drilling process, thus significantly reducing mud and disposal costs.

API Number	D100 (Micron)	Conductance
20	862.2	9.01
25	749.7	8.20
35	517.8	7.96
45	377.2	6.72
60	260.3	2.69
70	207.8	2.06
80	176.1	1.77
100	142.5	2.06
120	120.1	1.48
140	99.2	1.01
170	85.6	0.76
200	73.3	0.62
230	68.6	0.57
270	53.8	0.39
325	48.8	0.38
400	36.0	0.25



Structure	Description
Hook Strip Pinnacle	625 mm x 710 mm
Mesh type	A20 to A325
Bonding Material	Epoxy powder coating
