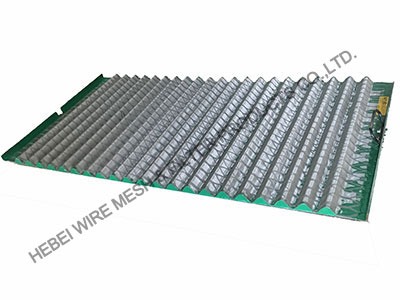

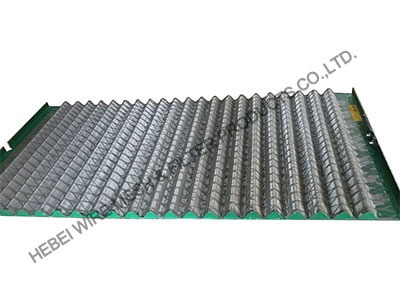

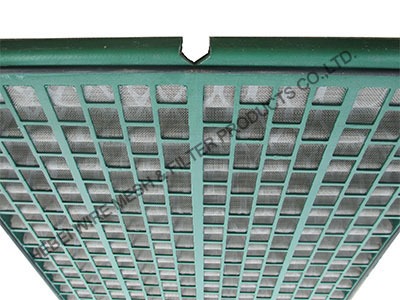

Correct use of solids-control equipment is essential to maintain drilling fluid within its desired properties and to avoid generation of unnecessary waste streams during drilling. HP600 shale shaker screen is designed for HP 600 shakers. HP600 screen is made of 2 or 3 layers wire cloth which are tensioned in all directions while being melted on the support panel, provides users longer service life at cost-effective price, and accurate cut point designation in compliance with API RP 13C. HP600 is 3-dimensional structure, increase the usable screen area up to 125%. It has a single handler at one screen side, makes the screen changing easier and faster. We also can produce the HP600 screen in flat screen type. Flat screen is cheaper and less weight.

Screen Model	HP600 screen
Screen Size	1070 X 570mm
Wire Mesh Material	SS304
Screen Type	Pinnacle
API	API20-API325
Number of layer	2 or 3
