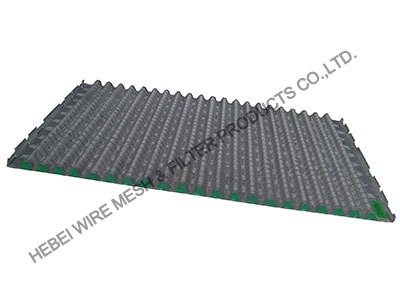

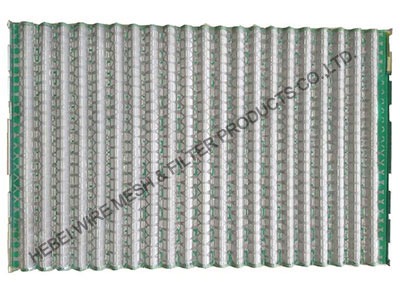

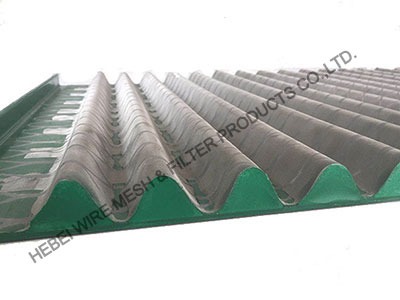

Pinnacle 2000 Shale Shaker Screen with Oblong Mesh Pinnacle 48 x 30 screen is the most popular screen for model 2000 shaker and mud cleaner. Layered oblong mesh with 2-3 mesh size of finer screens significantly increases screen through put rates. Provide for a more even distribution of fluids across the screen surface. Eliminates unwanted fluids loss near the screen edges. Delivers drier discharged solids. Remove substantially more solids than conventional screens. All our screens are labeled to include the new API RP 13C designation as well as the traditional nomenclature to facilitate field use and customer ordering. Screen Features • Ability to handle high flow rates • Longer screen life • Cut point integrity • Minimal screen blinding

API RP 13C  Designation	layers	D 100  (micron)	Conductance  (kd/mm)	Non-Blanked Area : sq.ft
API 35	2/3	477.5	7.35	6.96
API 40	2/3	411.7	7.00	6.96
API 45	2/3	341.1	6.15	6.96
API 50	2/3	288.5	5.44	6.96
API 60	2/3	243.7	4.29	6.96
API 70	2/3	202.7	3.53	6.96
API 80	2/3	170.4	2.89	6.96
API 100	2/3	142.0	2.14	6.96
API 120	2/3	117.8	1.69	6.96
API 140	2/3	104.0	1.76	6.96
API 170	2/3	85.4	1.24	6.96
API 200	2/3	73.3	0.92	6.96
