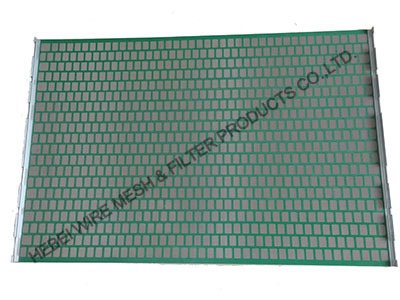

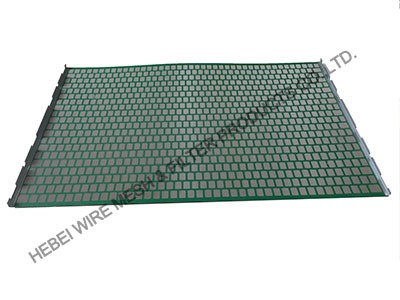

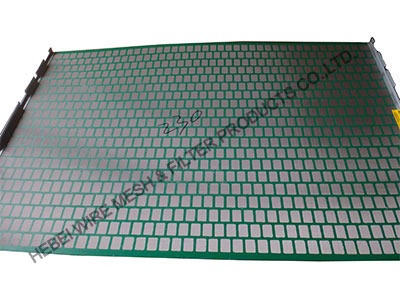

48 x 30 Shaker screen fit all TD 2000 3 and 4 panel shale shakers, TD with AWD, TD Plus, HI-G Dryer and the Cascade 2000. Fast, easy and reliable screen panel tensioning is provided by two pairs of rapid-Change draw bolts on each side of each screen panel. The non blanked screen area of the TD 2000 3-panel is 16.5sq.ft, while TD2000 4-panel is 21.2sq.ft with the flat screen. Shaker screen plays an important role in the solids control system. Drilling fluids may represent 15% of the total drilling cost, but it may cause 100% problem. So the first step is to choose a rightful quality screen from us. Model 2000 shale shaker screen code is usually referred as 48 x 30 screen, the screen dimension is approx 1050 x 695mm. Layered wire cloths are firmly bond to the perforated panel. Epoxy paint coating for extra strength, excellent chemical resistance and temperature properties. The tight hook dimensions allow the use of standard L shape hook as well as C shaped hook. Screen has a closed rubber seal strip under the leading and trailing edges to limit bypass.

API Number	D100	Conductance	Non-blanked Area
20	862.2	9.01	5.24
25	749.7	8.20	5.24
35	517.8	7.96	5.24
45	377.2	6.72	5.24
60	260.3	2.69	5.24
70	207.8	2.06	5.24
80	176.1	1.77	5.24
100	142.5	2.06	5.24
120	120.1	1.48	5.24
140	99.2	1.01	5.24
170	85.6	0.76	5.24
200	73.3	0.62	5.24
230	68.6	0.57	5.24
270	53.8	0.39	5.24
325	48.8	0.38	5.24
400	36.0	0.25	5.24
