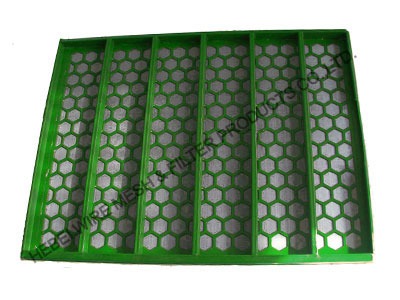

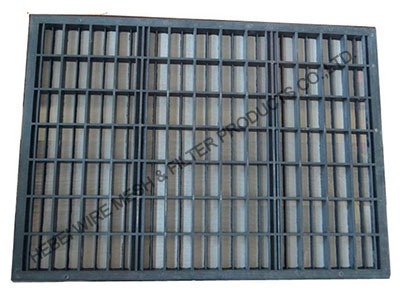

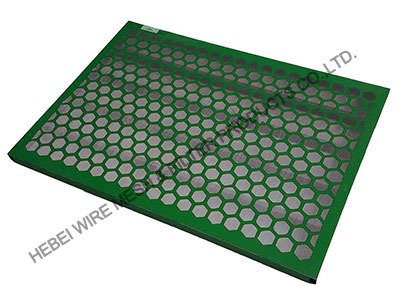

VSM 300 Scalping screen is used on the scalping deck, reduces the need for upstream scalping shakers, and eventually reduces the cost and weight burden. The function of the upper deck screen is to remove the large and heavy cuttings only. In general the screen should be selected such that the majority of fluid passes through the first screen. Scalping screens are designed to maximize solids removal capabilities while significantly reducing costs associated with drilling fluid and disposal. Lower the percentage of drilled solids in the mud system. Metal frame supported screen dimension is 37’’ x 27’’. The most common used wire cloths are the 10 mesh, 20 mesh and 30 mesh. These screens are usually made with single layer of square mesh Market Grade cloth.

Part Number	Market Grade Mesh Number.
VSM300S008MB	8
VSM300S010MB	10
VSM300S020MB	20
VSM300S030MB	30
VSM300S040MB	40
VSM300S050MB	50
VSM300S060MB	60
VSM300S080MB	80
