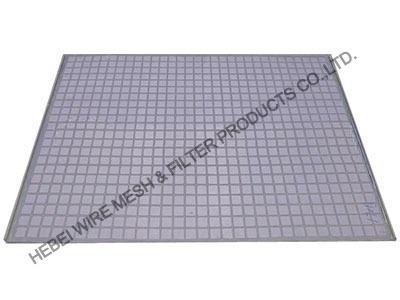

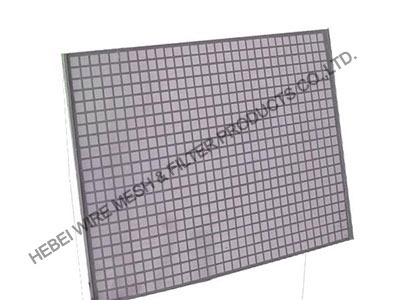

Hook strip replacement screens can be fit the LCM-2D shakers. The replacement screens utilize ultra fine screen cloth to maximize capacity while maintaining cut point integrity and minimizing near-size particle binding. Precisely perforated metal backing plate design features 1’’ perforated square apertures to greatly increase screen life and facilitate field repair for extended panel life. The feed end screen is set at 0°; the other screens are inclined at +5°. This design reduces the depth of the liquid pool to improve solids conveyance and reduce regrinding of solids while maintaining good flow properties.

Shaker Model	Screen Type	API RP 13C Non Blanked Screen Area
LCM-2D	Hookstrip	8.3 sq.ft.



API RP 13C(ISO 13501)
D100 Separation (Microns)	API Screen Number	D100 Separation (Microns)	API Screen  Number
>780.0 to 925.0	API 20	>165.0 to 196.0	API 80
>655.0 to 780.0	API 25	>137.5 to 165.0	API 100
>550.0 to 655.0	API 30	>116.5 to 137.5	API 120
>462.5 to 550.0	API 35	> 98.0 to 116.5	API 140
>390.0 to 462.5	API 40	> 82.5 to 98.0	API 170
>327.5 to 390.0	API 45	> 69.0 to 82.5	API 200
>275.0 to 327.5	API 50	> 58.0 to 69.0	API 230
>231.0 to 275.0	API 60	> 49.0 to 58.0	API 270
>196.0 to 231.0	API 70	> 41.5 to 49.0	API 325
