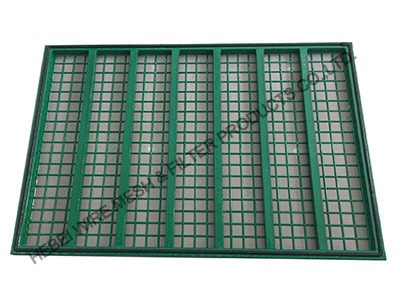

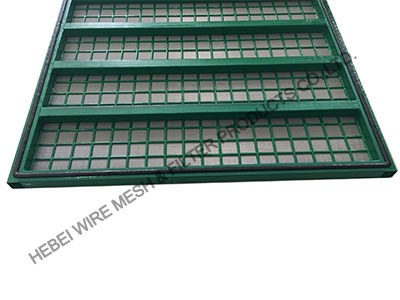

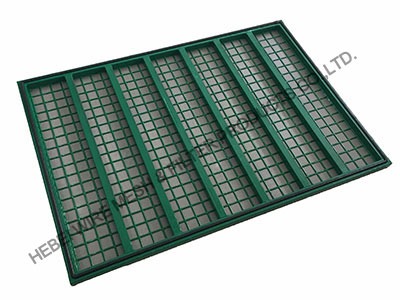

Frame supported metal back screen approximately 42" from side to side and 29" in the direction of flow. Two layers of Ultra Fine wire cloth are bonded to the panel, with the square or hexagonal perforated panel, the load stress can evenly distributed on the screen surface, and also provide a rigid support for the wire cloth layers, increase the screen area. Screen frame is produced using high yield structural tubing. Dimensional tolerances are ensured with the use of machined welding fixtures. Each frame is inspected and checked for flatness before the screen manufacturing process begins. The screen layered wire clothes are using the fine square opening cloth. Available mesh size is from 20 to 325 mesh. The screen features excellent screen life, better performance under heavy solids loading

Part No.	D100 (μm)	API No.	Conductance (Kd/mm)
FMD 38	526	35	7.5
FMD 50	425	40	5.7
FMD 70	285	50	4.2
FMD 84	233	60	3.4
FMD 110	189	80	2.8
FMD 140	145	100	2.3
FMD 175	121	120	1.8
FMD 210	108	140	1.6
FMD 250	91	170	1.3
