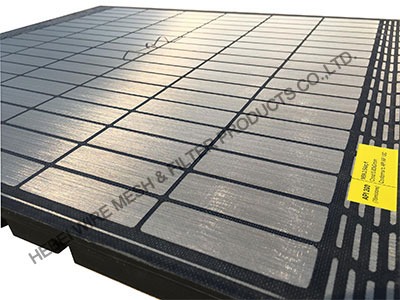

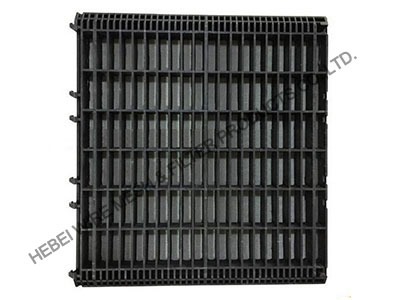

The MD2 & MD3 shale shaker screen are composite screens which maximize non blanked screen area while fully supporting the screen cloth with small repairable cells. The wire cloth layers are hot melted on the composite frame, there is no need for a support plate that could detach from the frame during operation. The result is a screen system that has excellent separation capacity and longer screen life. These improvements add up to improved efficiency and savings on per well screen cost. MD-2/3 shaker screen is a composite frame shaker screen for both M-I SWACO MD-2 dual deck shaker and MD-3 triple deck shale shaker. M-I SWACO MD-2 shale shaker is suitable for both onshore and offshore applications and MD-3 triple-decker shale shaker mainly targets primarily high-end offshore operations. Reinforced PT frame reduces the friction between the screen and deck plate. Featured by higher throughput, extended screen life, fewer replacements, our screens aim to lower the cost of mud treatment. MD-2/3 shaker screens are used as the substitute screen for M-I SWACO MD-2 dual flat-deck shale shaker M-I SWACO MD-3 triple-decker shale shaker Composite screen technology increases effective open area. Improves process capacity and maximizes screen life. Pre-tensioned screens with light weight for easier handling Manufactured according to the API RP 13C (ISO 13501). Scientific & reasonable cost control system for competitive price.

Mesh Type	API RP 13C Designation	Conductance Number	D100 Separation (microns)	Non-Blank Area (sq.ft)
XR	API 325	0.3	48	2.64
XR	API 270	0.48	57	2.64
XR	API 230	0.68	61	2.64
XR	API 140	1.04	100	2.64
XR	API 140	1.1	110	2.64
XR	API 120	1.3	117	2.64
XR	API 100	2.6	142	2.64
XR	API 70	3.59	204	2.64
XR	API 60	3.62	233	2.64
XR	API 60	4.3	237	2.64
XL	API 325	0.38	44	2.64
XL	API 230	0.39	61	2.64
XL	API 200	0.78	72	2.64
XL	API 200	1.12	78	2.64
XL	API 140	1.62	100	2.64
XL	API 140	1.77	116	2.64
XL	API 100	2.2	144	2.64
XL	API 80	4.39	186	2.64
XL	API 70	3.15	205	2.64
XL	API 60	3.98	239	2.64
XL	API 50	6.02	295	2.64
XL	API 35	10.39	480	2.64
XL	API 20	12.01	787	2.64
